3850 Rivertown Parkway

Notes

• Tenant: __________________________
• Contacts: Jon 616-822-9562, Corey 616-726-8062, Tom 616-822-9892
• Keys / Access: ___________________

Manuals / Diagrams / Parts

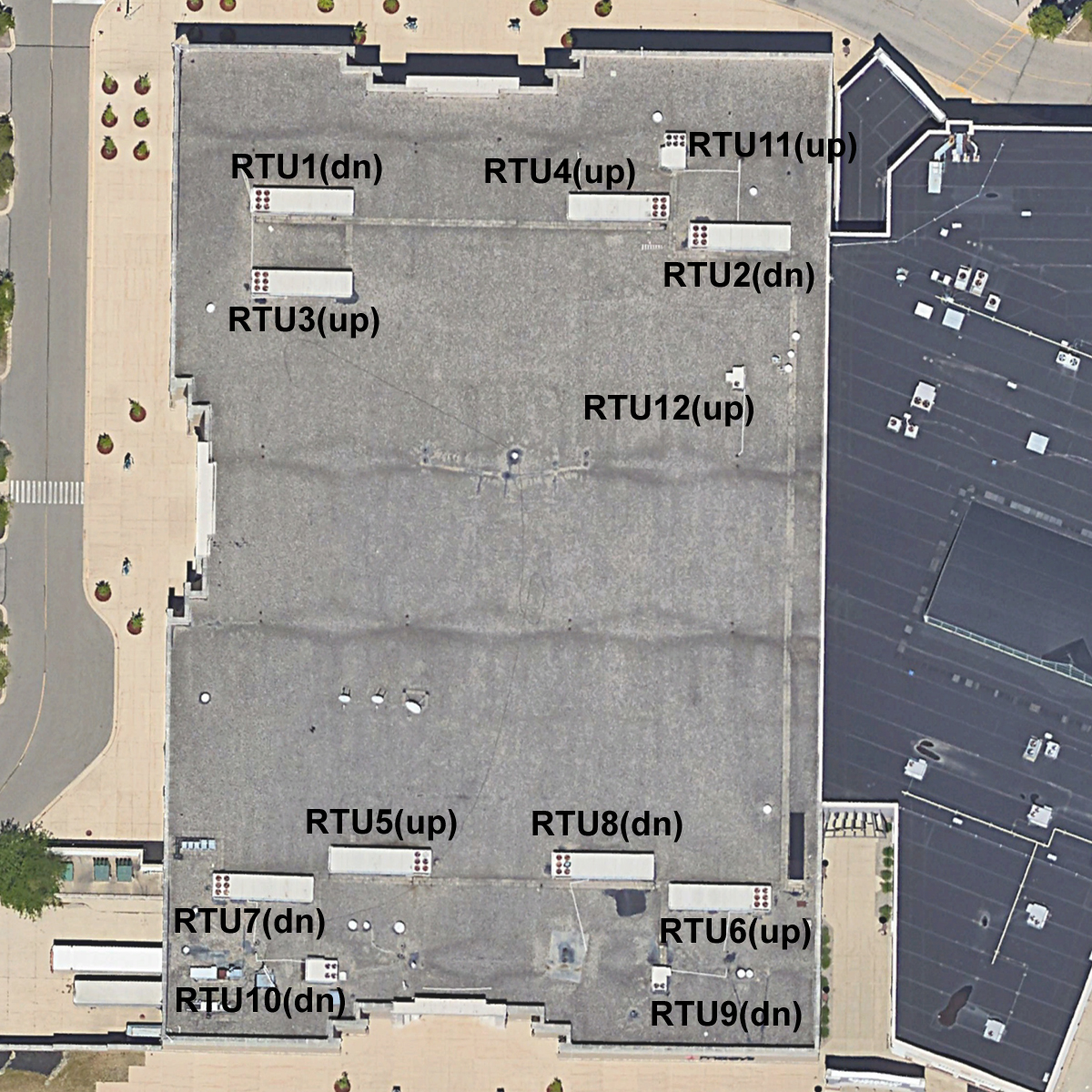

RTU HVAC Units

• RTU 1
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00722 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


• RTU 2
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00723 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


• RTU 3
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00724 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


• RTU 4
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00725 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


• RTU 5
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00726 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


• RTU 6
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00727 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


• RTU 7
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00728 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


• RTU 8
  Model: McQuay/Daikin - RPS060CLE
  SN: 38F00729 02
  60 Ton Cooling, 623,800 BTU Electric Heating
  Daikin Catalog: RoofPak Applied Rooftop Systems
  Daikin Installation and Maintenance Manual


  Technical Note: Original McQuay installation and service literature for RTUs 9–12 (LCA120, LCA240, LCA300 and CHA24 series) is no longer readily available. These units share model nomenclature, components, and service procedures with equivalent Lennox commercial rooftop equipment, and the Lennox engineering, installation, and service manuals provided here are the closest known factory references. Always verify wiring diagrams and factory-installed options using the documentation located inside the unit control compartment.


• RTU 9
  Model: McQuay/Daikin - LCA120HN1G
  SN: 28F 01994 01
  10 Ton Cooling Only
  Reference Manual (Lennox): Engineering Data – LCA/LGA 102, 120 & 150
  Reference Manual (Lennox): Installation – LCA120H


• RTU 10
  Model: McQuay/Daikin - LCA240HN1G
  SN: 28F 01803 01
  18 Ton Cooling, with 275,000 BTU Heating
  Reference Manual (Lennox): Installation – LCA240
  Reference Manual (Lennox): Service & Maintenance – LCA240


• RTU 11 - (marked office)
  Model: McQuay/Daikin - LCA300HN1G
  SN: 28F 01961 01
  25 Ton Cooling Only
  Reference Manual (Lennox): Engineering Data – LCA/LGA 300H & 360
  Reference Manual (Lennox): Service & Maintenance – LCA300H


• RTU 12
  Model: McQuay/Daikin - CHA24-953-1G
  SN: 2 7 M01993 01
  7.5 Ton Cooling Only
  Reference Manual (Lennox): Engineering Data – CHA24-953
